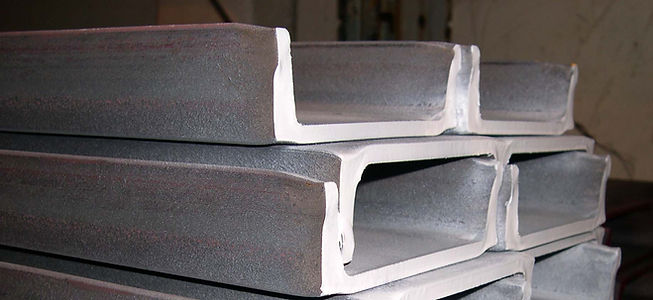

Channels Ship & Car

D Depth of Channel & Weight Per Ft.
Weight For 20'
WT Thickness Of Web in Inches
FW Width Of Flange in Inches
3" x 7.1 lbs.
142
0.313
1.938
4" x 13.8 lbs.
276
0.5
2.5
6" x 12.0 lbs.
240
0.313
2.5
6" x 15.1 lbs.
302
0.316
2.941
6" x 15.3 lbs.
306
0.34
3.5
6" x 16.3 lbs.
326
0.375
3
6" x 18.0 lbs.
360
0.375
3.5
7" x 9.8 lbs.
352
0.375
3
7" x 12.25 lbs.
382
0.35
3.45
7" x 14.75 lbs.
454
0.5
3.6
8" x 18.7 lbs.
374
0.35
2.975
8" x 20.0 lbs.
400
0.4
3.025
8" x 21.4 lbs.
428
0.375
3.45
9" x 23.9 lbs.
478
0.375
3.5
9" x 25.4 lbs.
508
0.45
3.5
10" x 22.0 lbs.
440
0.29
3.315
10" x 25.0 lbs.
500
0.375
3.4
10" x 28.5 lbs.
570
0.425
3.95
12" x 31.0 lbs.
620
0.37
3.67
12" x 35.0 lbs.
700
0.467
3.767
12" x 45.0 lbs.
900
0.712
4.012
12" x 50.0 lbs.
1000
0.835
4.135
13" x 31.8 lbs.
636
0.375
4
13" x 50.0 lbs.
1000
0.787
4.412
18" x 42.7 lbs.
854
0.45
3.95
18" x 45.8 lbs.
916
0.5
4
18" x 58.0 lbs.
1160
0.7
4.2
